Overview

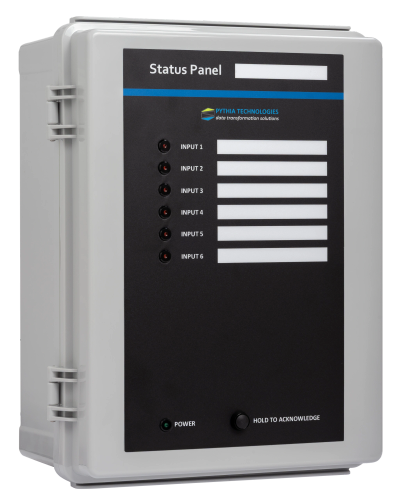

The Remote Leak Detection Panel is a purpose-built monitoring panel that provides visual, audible, and networked alarms for up to six dry-contact leak sensors. Housed in a rugged ABS enclosure, it's designed for data centers, mechanical rooms, server spaces, and mission-critical facilities where early water detection is essential.

With integrated sensor power, alarm latching options, and Modbus communications, the panel ensures reliable monitoring and seamless integration into building management systems. Optional adapters extend connectivity to Modbus/TCP, BACnet/IP, or SNMP, making it flexible for enterprise environments.

Two models — choose your sensor power:

CS0-RSP2-06 — integrated 24VAC sensor power supply
CS0-RSP3-06 — integrated 24VDC sensor power supply

Both models are identical in monitoring, alarm, and communication capability. The only difference is the sensor power output.

📞 Call (740) 363-2272 for pricing and configuration

Choose Your Model

CS0-RSP2-06 — 24VAC Sensor Power (SKU: CS0-RSP2-06)
Includes a 120VAC-to-24VAC transformer @ 40VA for powering 24VAC leak sensors. Select this model when your leak detection sensors require 24VAC.

CS0-RSP3-06 — 24VDC Sensor Power (SKU: CS0-RSP3-06)
Includes a 120VAC-to-24VDC transformer @ 40VA for powering 24VDC leak sensors. Select this model when your leak detection sensors require 24VDC.

Both models offer the same six-sensor monitoring, front-panel alarms, common alarm relay, and optional Modbus/TCP, SNMP, or BACnet/IP communication.

📞 Call (740) 363-2272 for pricing, part numbers, and custom assembly options.

Key Features

✅ Monitor up to 6 dry-contact leak sensors (up to 1,000 ft)
✅ Front-panel LEDs and audible alarm with silence/acknowledge button
✅ Common alarm relay output rated 6A @ 250VAC / 30VDC
✅ Alarm latching with configurable input type (NO/NC)
✅ LED test mode for quick verification
✅ Integrated 24VAC sensor power supply (RSP2-06 model)
✅ Integrated 24VDC sensor power supply (RSP3-06 model)
✅ Modbus/RTU standard, with Modbus/TCP, SNMP, or BACnet/IP options
✅ ABS enclosure, IP67 rated, UL94-V0
✅ Meets or exceeds UL 508A Open Industrial Control Panel standard

Applications & Use Cases

The Remote Leak Detection Panel is ideal for:

Data centers and IT server rooms
CRAC units and mechanical spaces
Industrial process areas with water risk
Mission-critical facilities requiring remote leak monitoring

Example use cases:

Centralized monitoring of 6 leak points with relay output to BMS
Integration with Modbus/TCP or SNMP for enterprise IT/OT monitoring
Local audible + visual indication of leak alarms in remote areas

Technical Specifications

Alarm Inputs: 6 voltage-free, up to 1,000 ft (Belden 6300UE recommended)
Relay Outputs: 6A @ 250VAC / 30VDC, Class 2 circuits only
Panel Ratings: ABS enclosure, IP67 rated, UL94-V0
Operating Temperature: –30°C to 45°C (–22°F to 113°F)
Relative Humidity: 5–95%, non-condensing
Input Power: 120VAC standard; optional 24VAC or 48VDC supplies
Sensor Power: 120VAC-to-24VAC transformer @ 40VA (RSP2-06); 120VAC-to-24VDC transformer @ 40VA (RSP3-06)
Connectivity: Modbus/RTU standard; Modbus/TCP, SNMP, BACnet/IP optional
Dimensions: Compact ABS wall-mount enclosure

Ordering Information

The Remote Leak Detection Panel is available now through Pythia Technologies.

Standard Models:

CS0-RSP2-06 (24VAC sensors)
CS0-RSP3-06 (24VDC sensors)

Optional Accessories:

Alternate power supplies (48VDC)
Modbus/TCP, SNMP, BACnet/IP adapters

📞 Call (740) 363-2272 or email sales@pythiatech.com for pricing, part numbers, and custom assembly options.
